Chevron Corrugation (iso-area)

Model December 21, 2015 August 7, 2022
…/Cpt1Ht …/BQXpHx …/ChbcjR …/562345007264685
Folding instructions: Chevron Corrugation
Main model description: Chevron Corrugation
Other folds and variants: Chevron Corrugation (UD-DU), Heptagonal Star Box (Chevron Corrugation), Chevron Corrugation (UUDD-DDUU), Chevron Corrugation (UD-UU-DU-DD)
Paper: Khepera
Type: abstract corrugation-tessellation (implies: abstract corrugation, abstract tessellation, abstract, corrugation, geometric, pattern, abstract periodic tessellation, non-recursive periodic tessellation, periodic tessellation, tessellation)
Author: Charles Hoberman, Daniel Kwan, Michał Kosmulski, Ron Resch (independent design)
Colors: brown and beige
In albums: Models with 3D anaglyphs, Chevron Corrugation Family, Models designed by me and by others

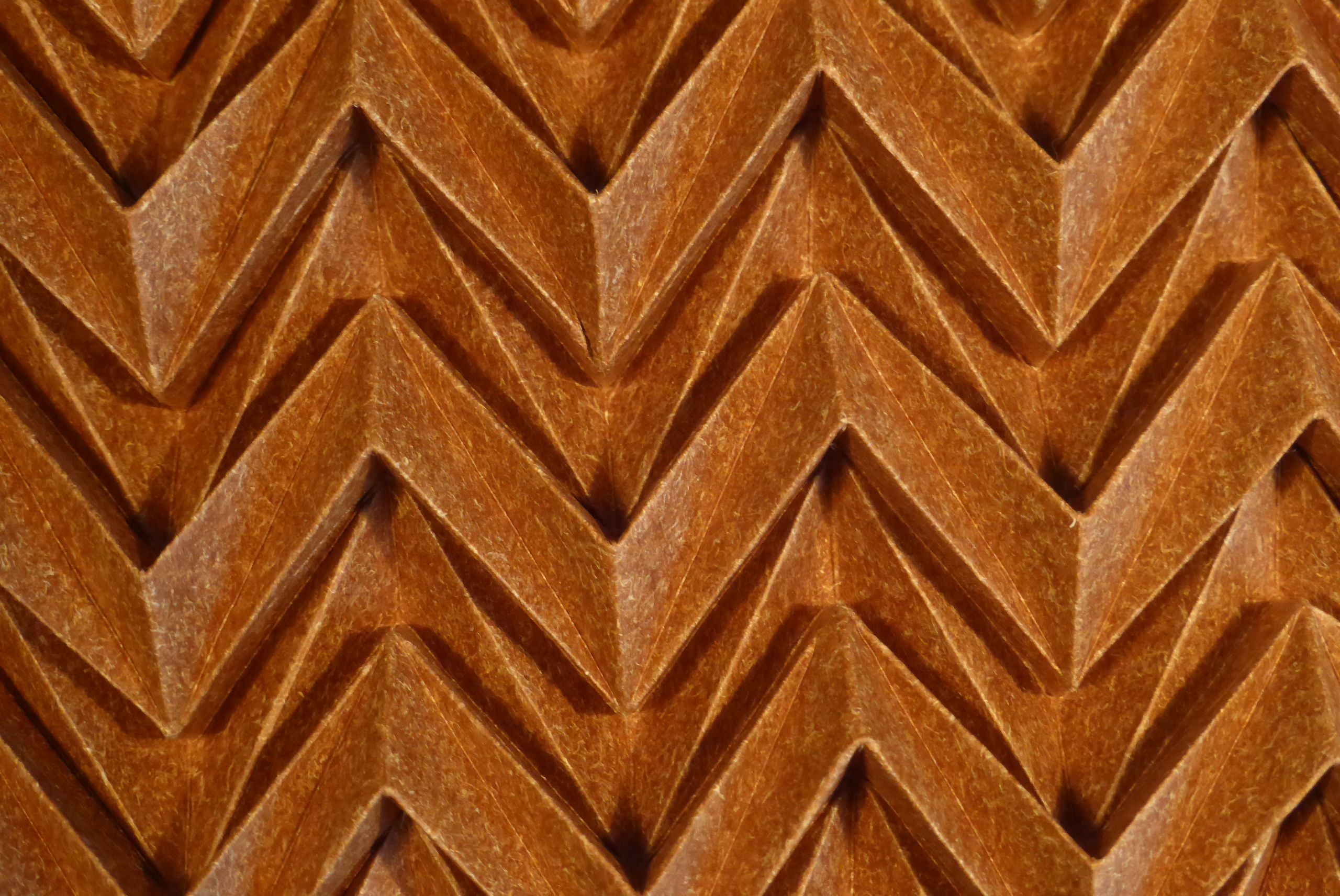

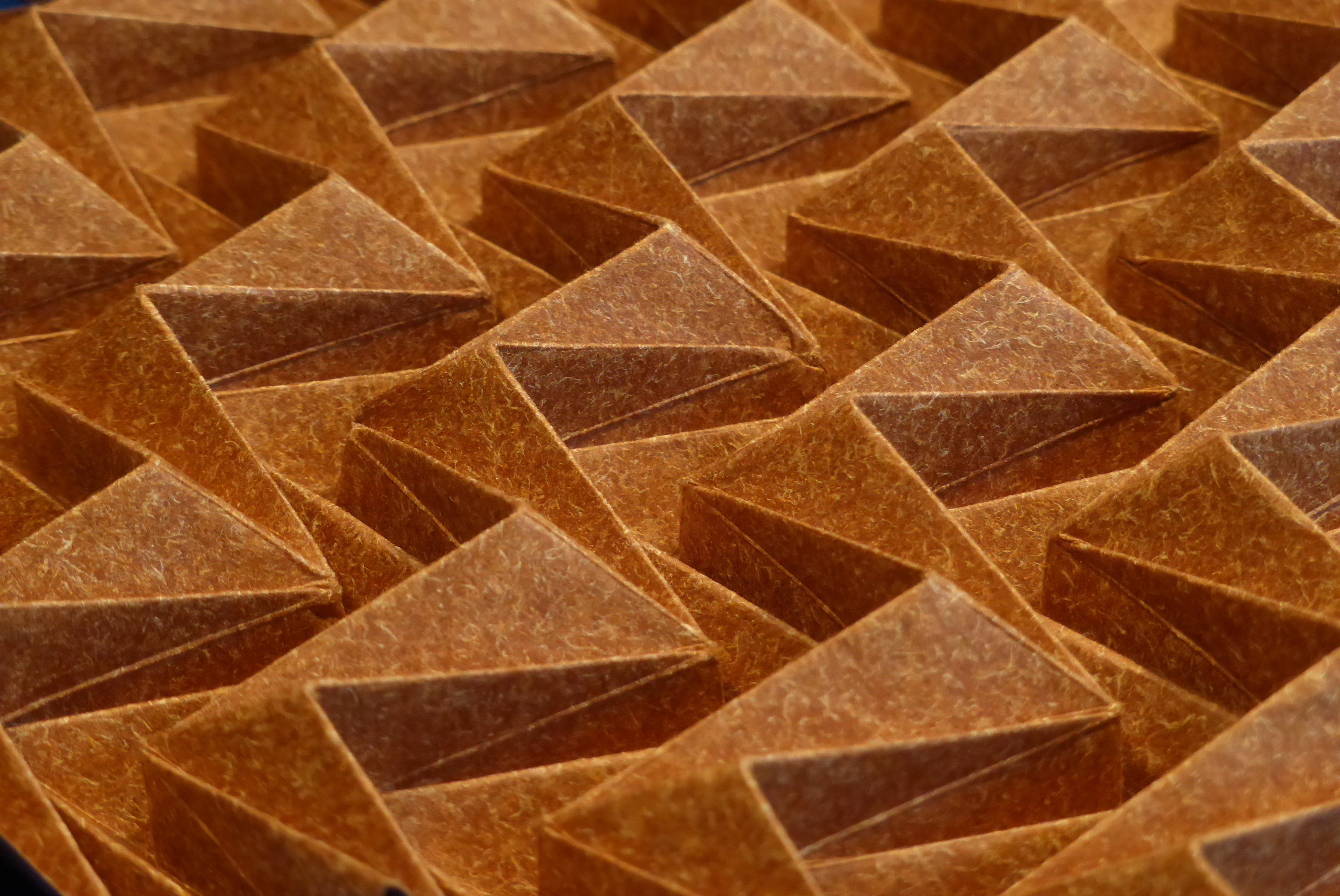

Close-up — Images are licensed under the Creative Commons Attribution-NonCommercial 4.0 International License

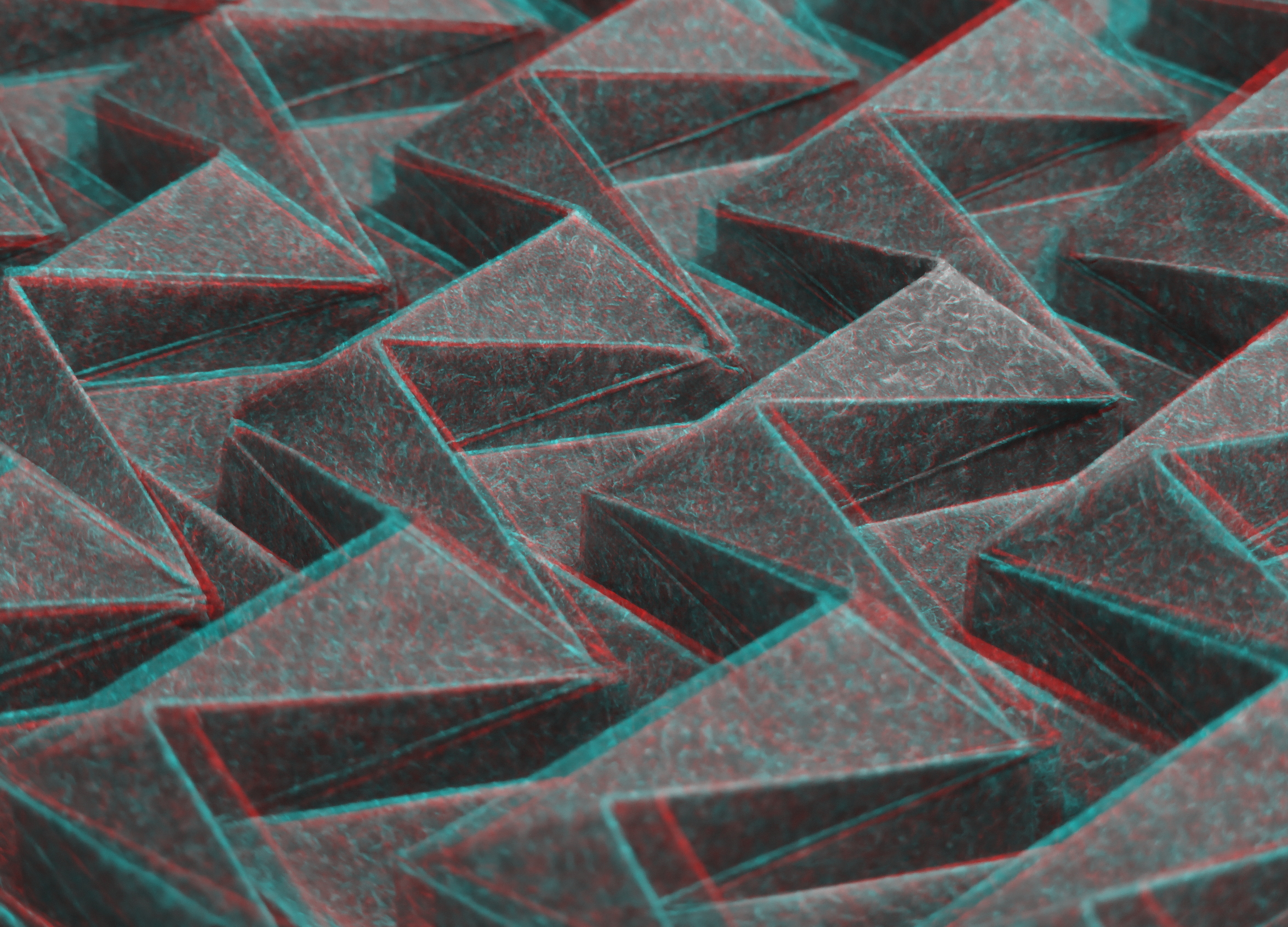

3D anaglyph of close-up — Images are licensed under the Creative Commons Attribution-NonCommercial 4.0 International License

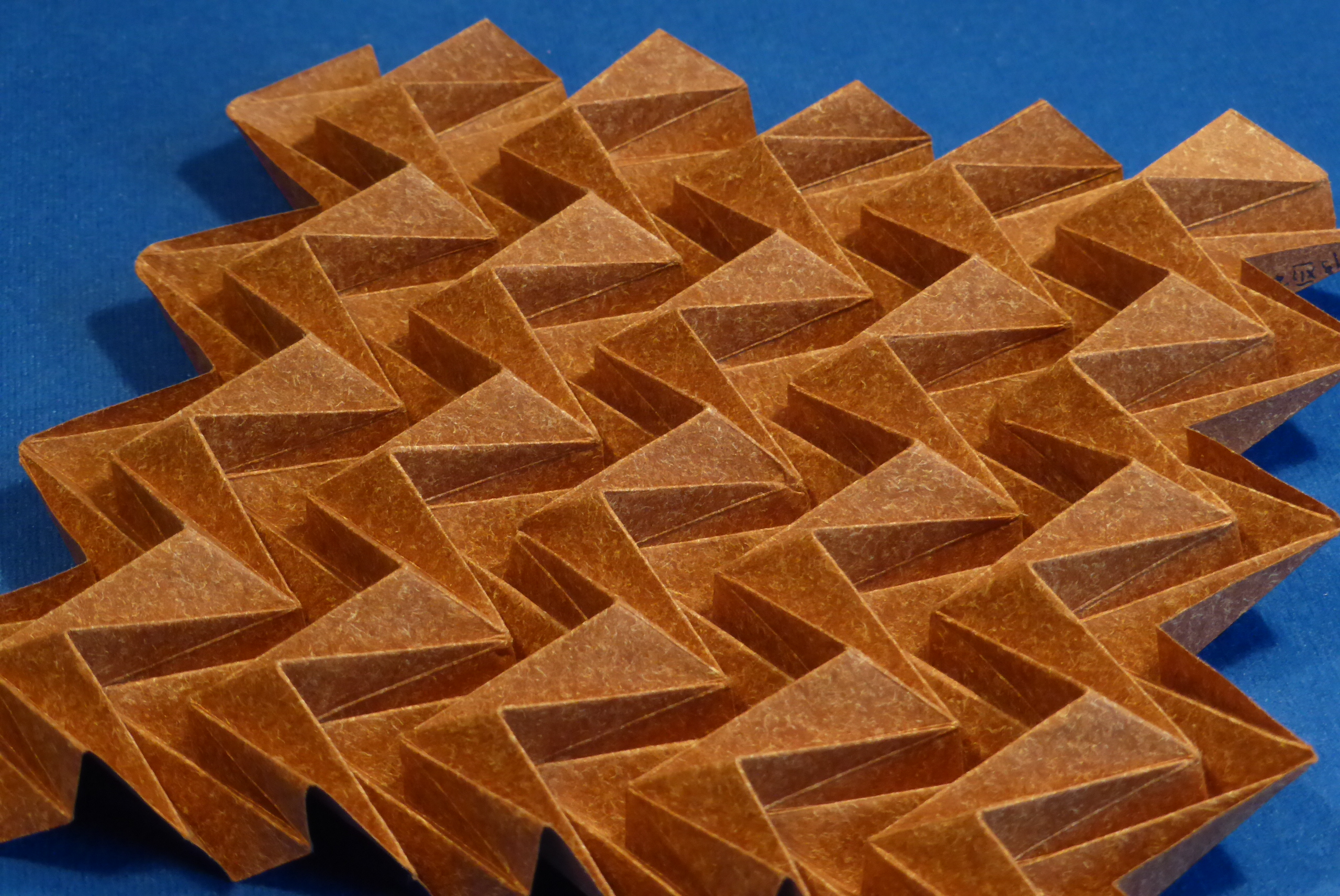

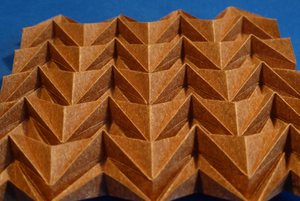

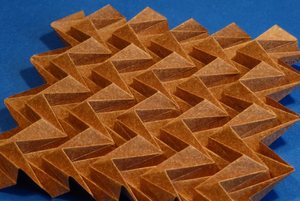

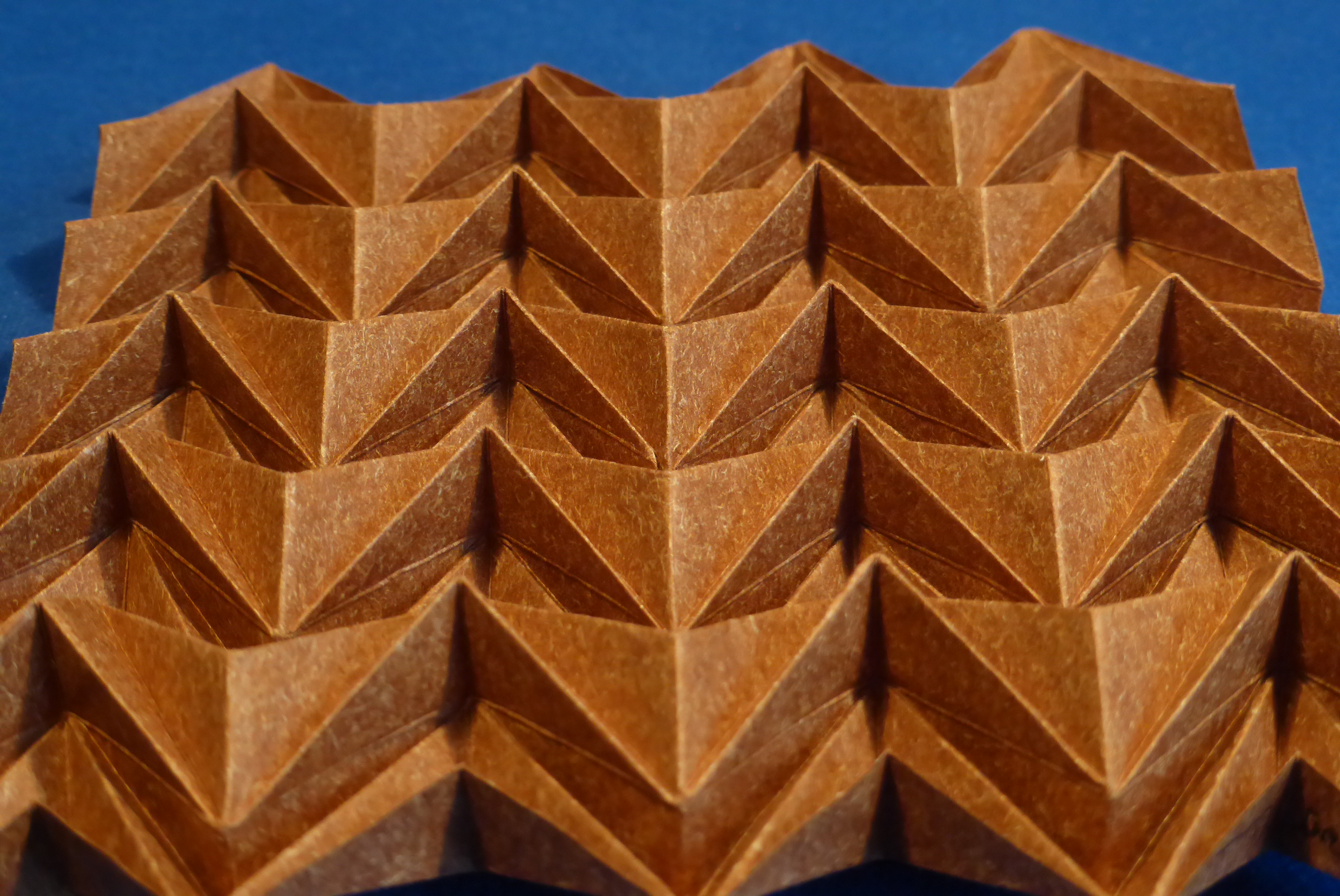

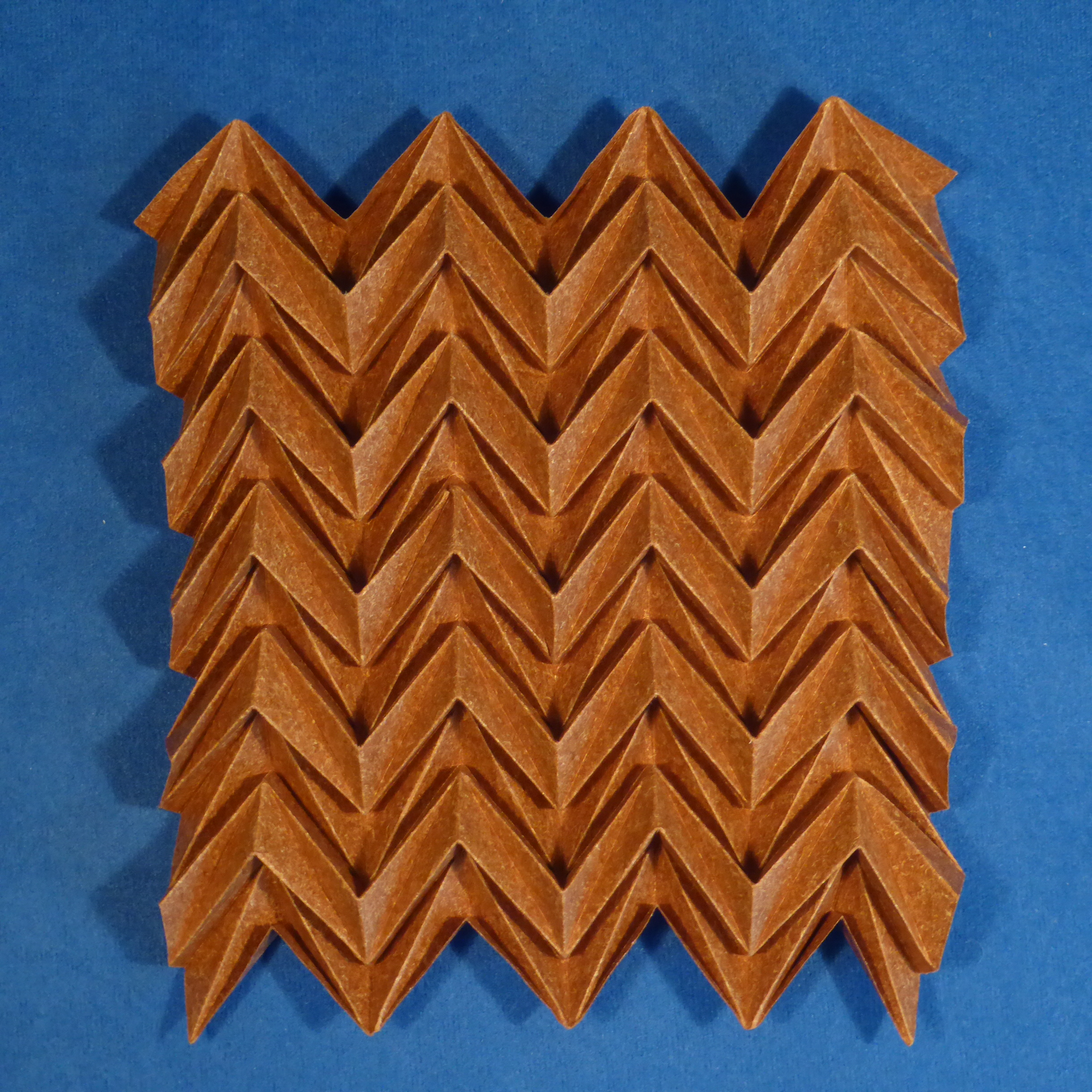

This is a variant of my Chevron Corrugation in which every other row of chevrons is reversed, i.e. pointing down instead of up. This makes the corrugation iso-area, meaning both sides look the same. It also removes the tension which causes the basic version to curl: this variant can be spread as narrow or as wide you like without curling.

Potentially, pushing individual chevrons up or down (rather than whole rows) could be used to create pixel images.

A model almost identical to this one (just the angles seem a bit different) is seen in the Paper and Stick movie by Ron Resch which shows models he designed in 1960-66.
