Chevron Corrugation

Instructions January 24, 2017 February 23, 2023
Model details: Chevron Corrugation (by: Charles Hoberman, Daniel Kwan, Michał Kosmulski, Ron Resch, Shuzo Fujimoto)
See also: Chevron Corrugation (iso-area), Chevron Corrugation (UD-DU), Heptagonal Star Box (Chevron Corrugation), Chevron Corrugation (UUDD-DDUU), Chevron Corrugation (UD-UU-DU-DD)
Model types: abstract corrugation-tessellation
Location: on this page, in print media
Type: Crease Pattern, Folding tips

Chevron Corrugation (Michał Kosmulski and others) — Images are licensed under the Creative Commons Attribution-NonCommercial 4.0 International License

Chevron Corrugation UD-DU variant (Michał Kosmulski and others) — Images are licensed under the Creative Commons Attribution-NonCommercial 4.0 International License

My instructions

Instructions are available as a single PNG image:

PNG

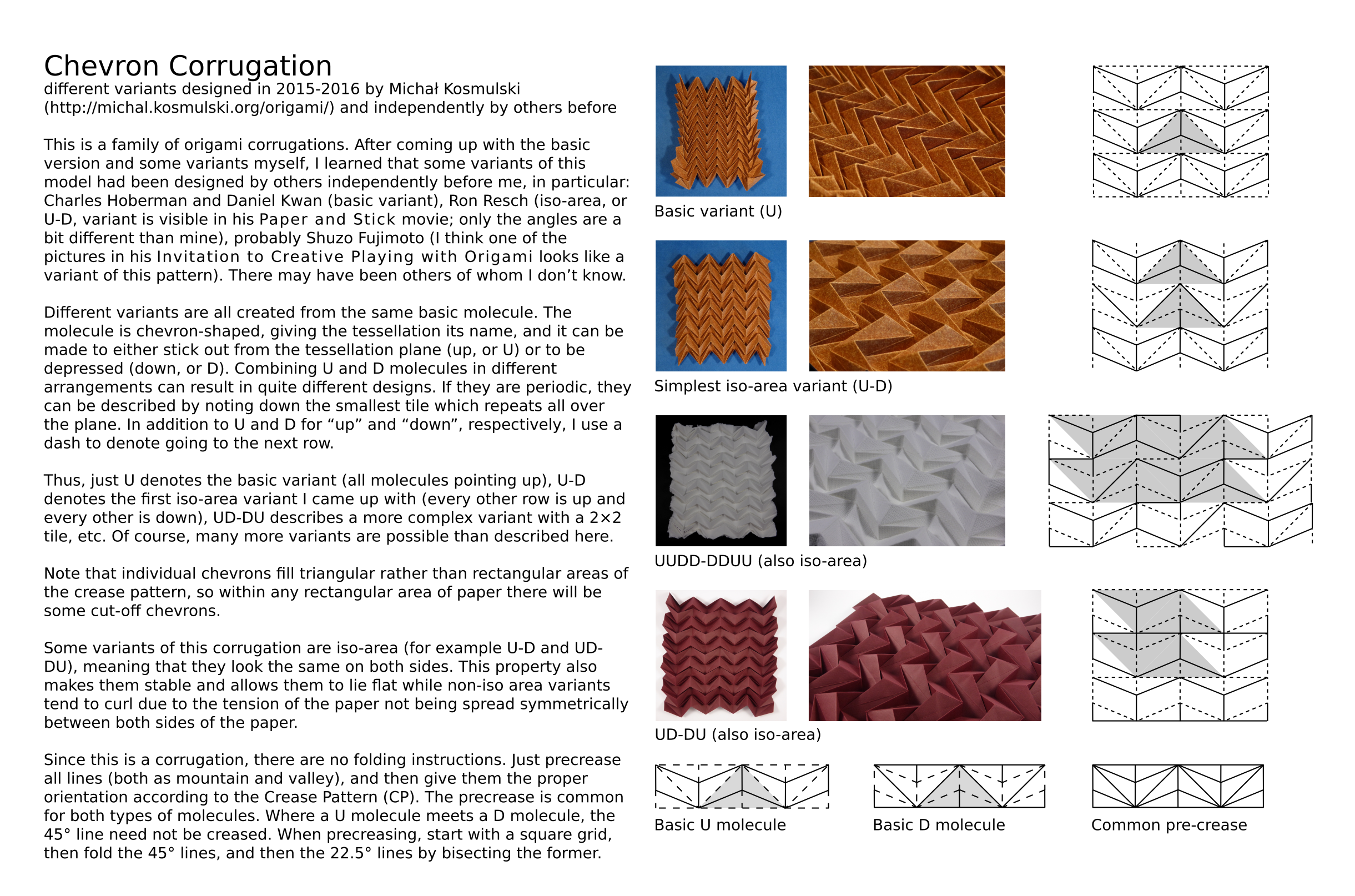

Chevron Corrugation CP (PNG)

Instructions by others

Shuzo Fujimoto’s version, based on 30° angles, can be found in his books:

Invitation to Creative Playing with Origami, page 194 (model B11)
Solid Origami, page 82 (model B10)
