Twisted Bird Base Tessellation (with molecule examples)

Model
…/AtFDzK
Folding instructions: Twisted Bird Base Tessellation
This is the primary page for this model.
Other folds and variants: Twisted Bird Base Tessellation (simple molecules), Box with Twisted Bird Base Tessellation Molecule
Paper: Khepera
Type: classic tessellation (implies: abstract tessellation, abstract, geometric, pattern, abstract periodic tessellation, non-recursive periodic tessellation, periodic tessellation, tessellation)
Author: Michał Kosmulski
Colors: red
In albums: Works in Progress

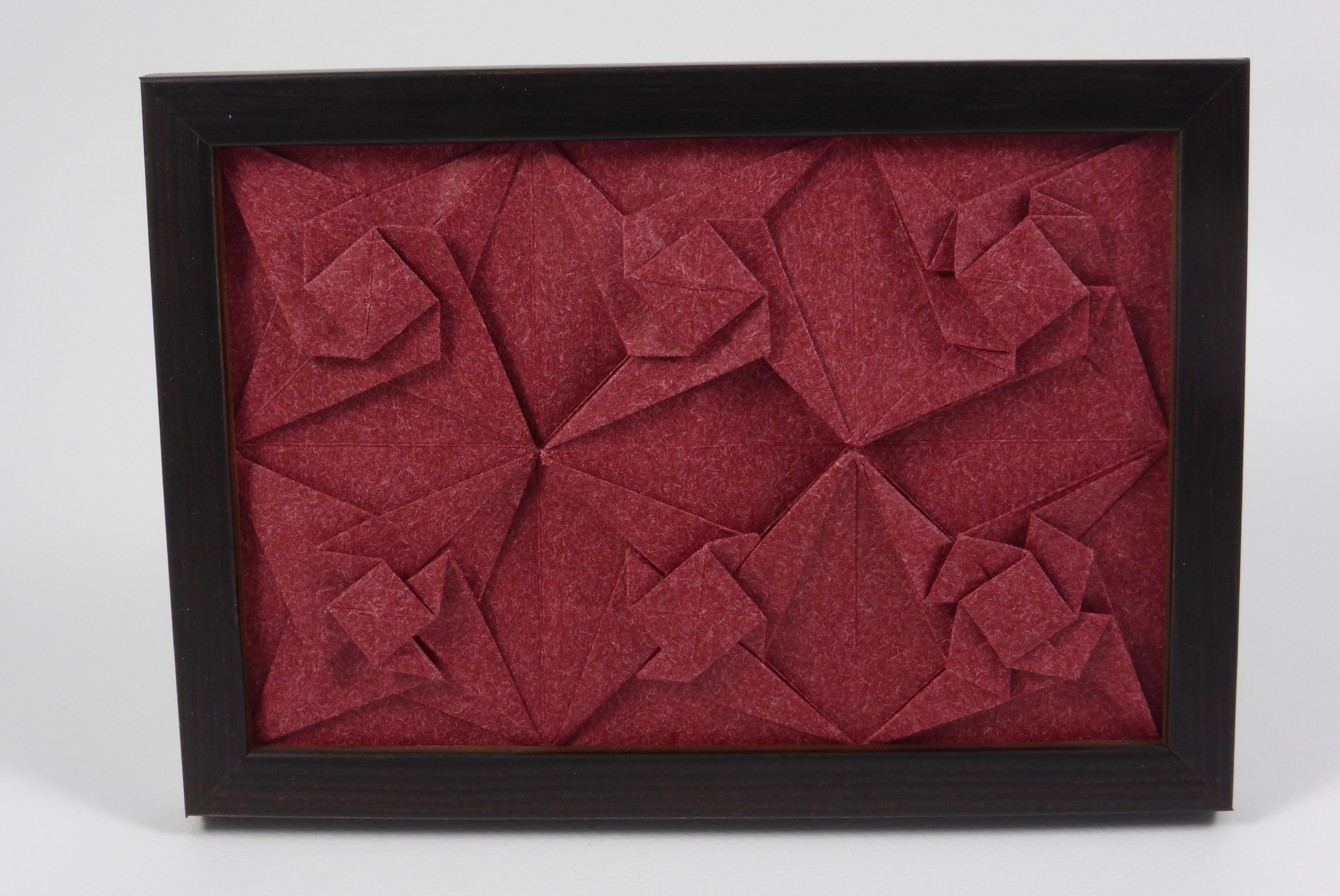

Different molecule variants Framed Basic variant (same model before shaping the molecules) Basic molecule (angled) Basic molecule variant close-up
Images are licensed under the Creative Commons Attribution-NonCommercial 4.0 International License

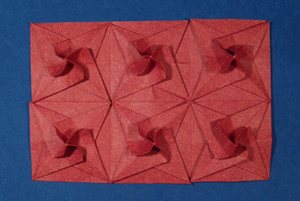

I recently came up with the idea of the Twisted Bird Base Tessellation. As the name implies, it is based around the bird base which is folded with some extra paper and then twisted so that the flat part forms a square which enables tessellating. The central part pops out of the sheet and can be formed in many different ways. I plan to post a large version of the basic variant soon but in the meanwhile, here are some examples of how the molecules can be shaped.

These are obviously not all possibilities of shaping the molecules. Horizontally, the shaping of the four petals changes while the two vertical rows show two twisting directions of the central part.

Interestingly, each molecule in this example has three separate twists in three stacked layers, each with different properties:

  • the lowest layer is the twist which enables tessellating the molecules: like in the plain square twist, two neighboring twists must have opposite chirality
  • the middle layer is the stacking order of the four petals: this twist’s direction is independent from the twist below so you can have any twist direction that you like (many tessellations based around twists force a change in direction every other molecule); the middle variant is an exception since in order to thin the petals, layers have to be folded under the petal which is only possible if the rotation direction agrees with the twist that lies below
  • finally, the third, upper-most twist is the middle part of the base: this twist’s direction is again independent from the direction of the twist below

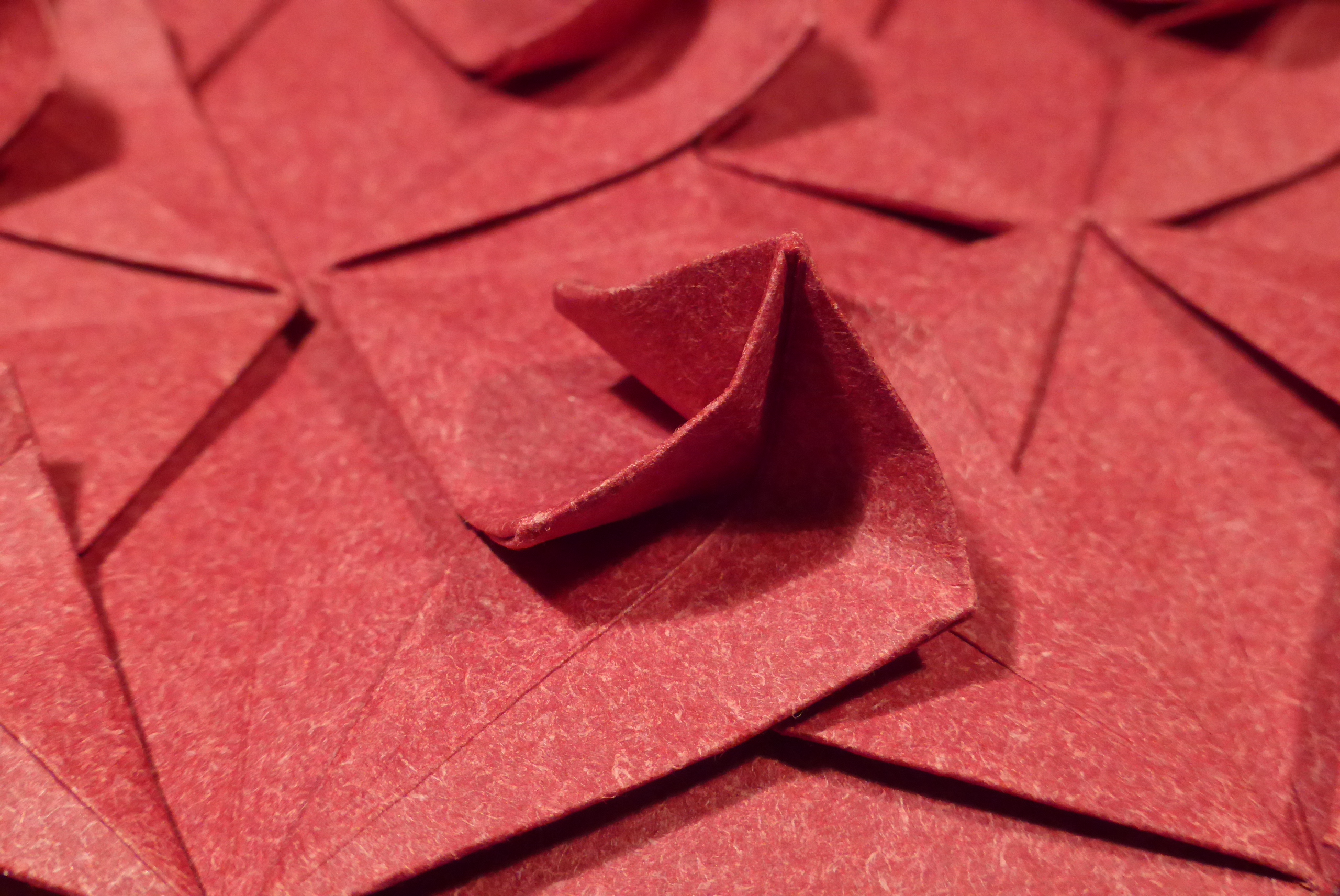

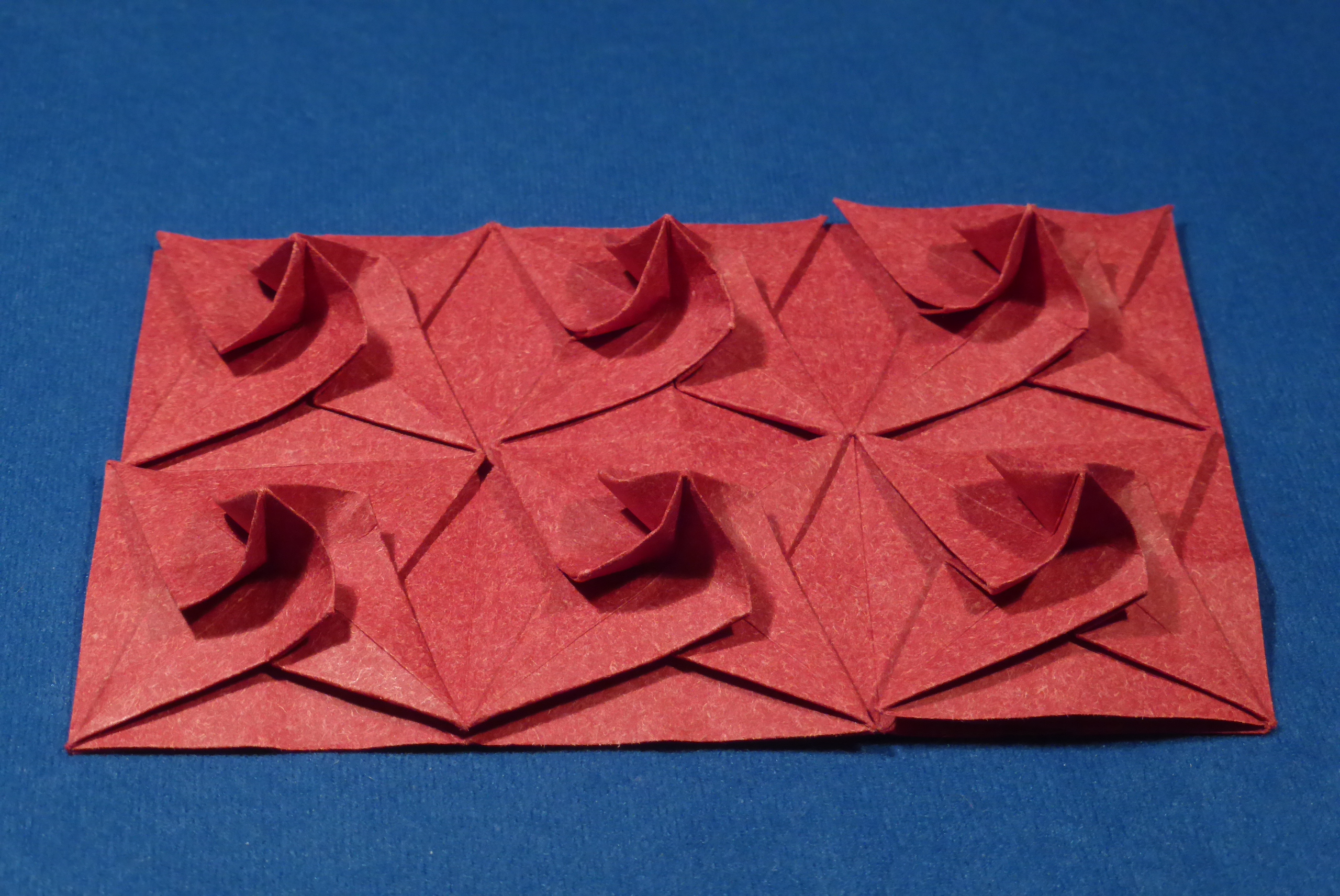

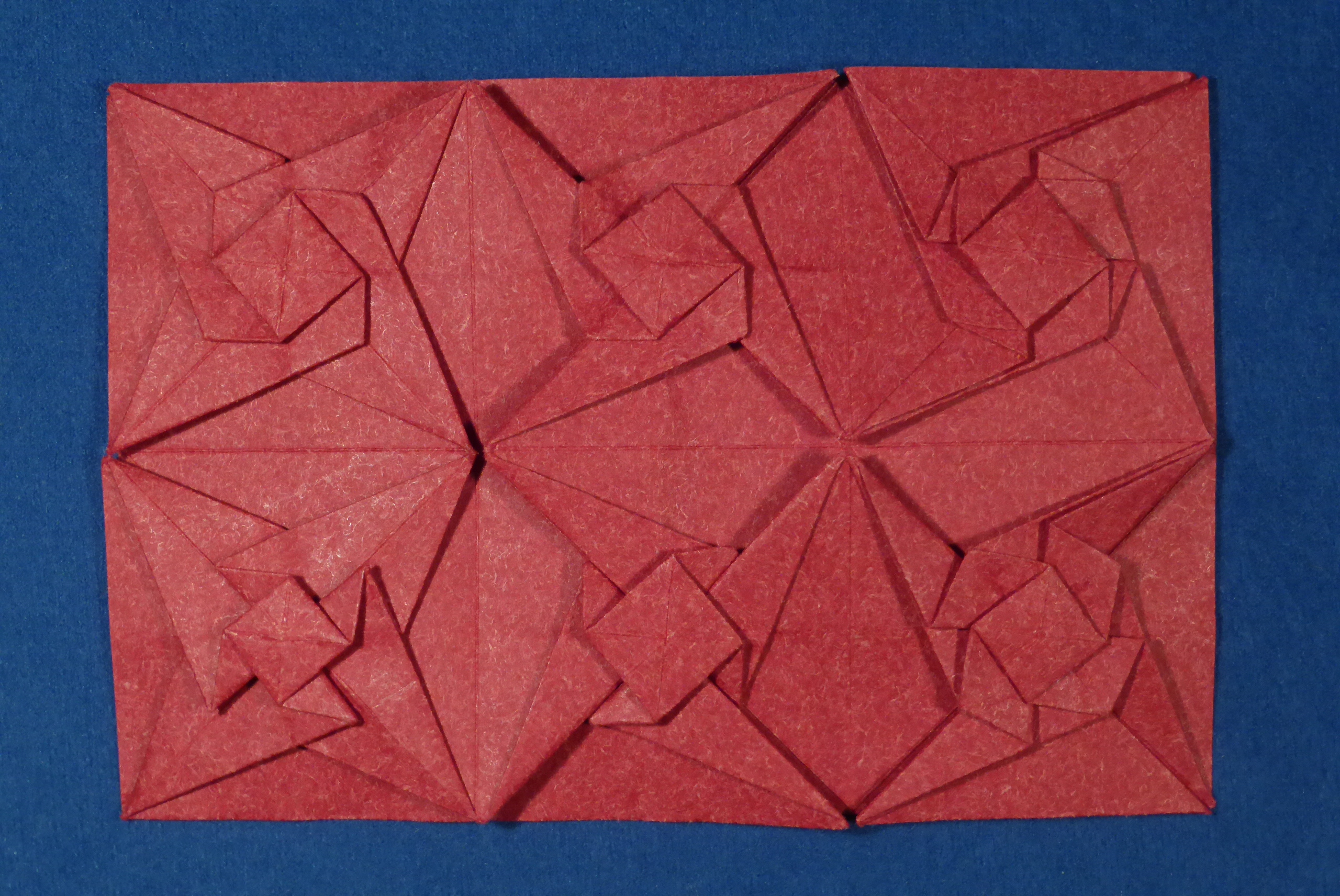

While first picture shows some variants of shaping, further pictures show the basic molecule, in which the central part of the bird base points up from the tessellation’s plane. This is the same model as in first image but before shaping. Actually, I think the basic molecule may be the most attractive. I also folded a larger model of the tessellation with just simple molecules.

Unlike many others, this tessellation is not based around a square or hexagonal grid.
