Box with Woven Triangles I

Instructions
Model details: Box with Woven Triangles I (by: Michał Kosmulski)

Model types: box lid, classic tessellation
Location: on this page
Type: Crease Pattern, Phototutorial

Box with Woven Triangles I (Michał Kosmulski)

Below you can find a precrease pattern and a photo tutorial of the collapse (for a clean fold). The model is designed around a 12×12 grid, of which 8×8 is the tessellation molecule. You can either fold the complete grid and then add the diagonal creases, or use the techniques described in How I precrease paper for tessellations in order to make a clean precrease without folding the grid first.

If you are interested in folding the corresponding tessellation, have a look at Woven Triangles Tessellation I instructions.

Step 1a

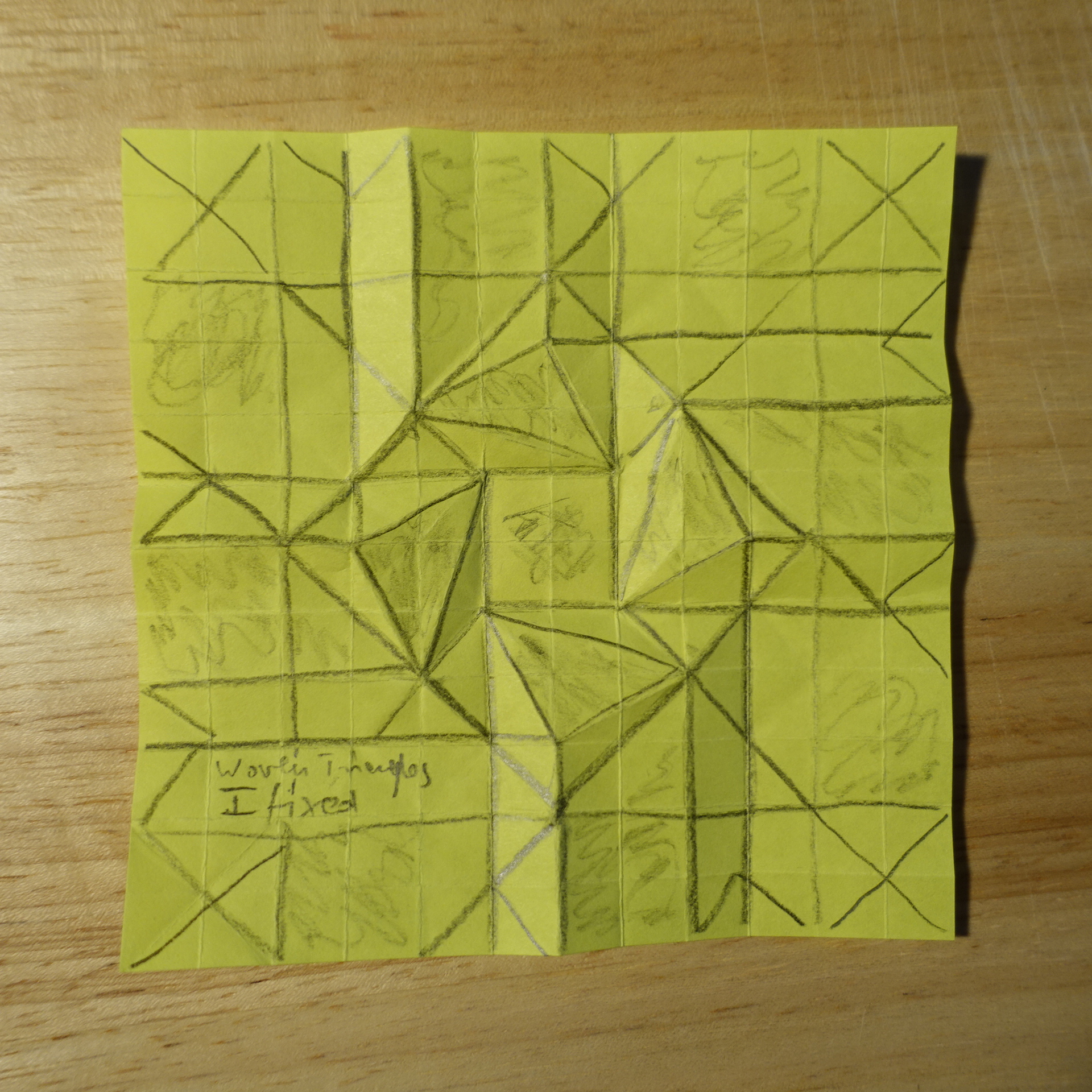

1a. Clean precrease pattern.
Step 1b

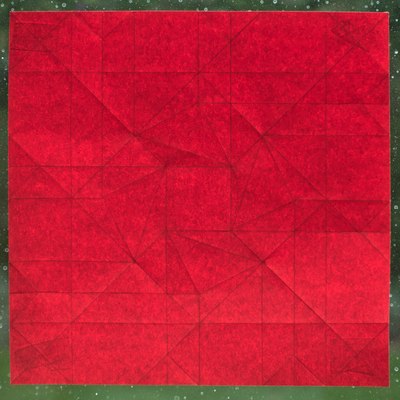

1b. Clean precrease pattern (actual precreased sheet).
Step 2

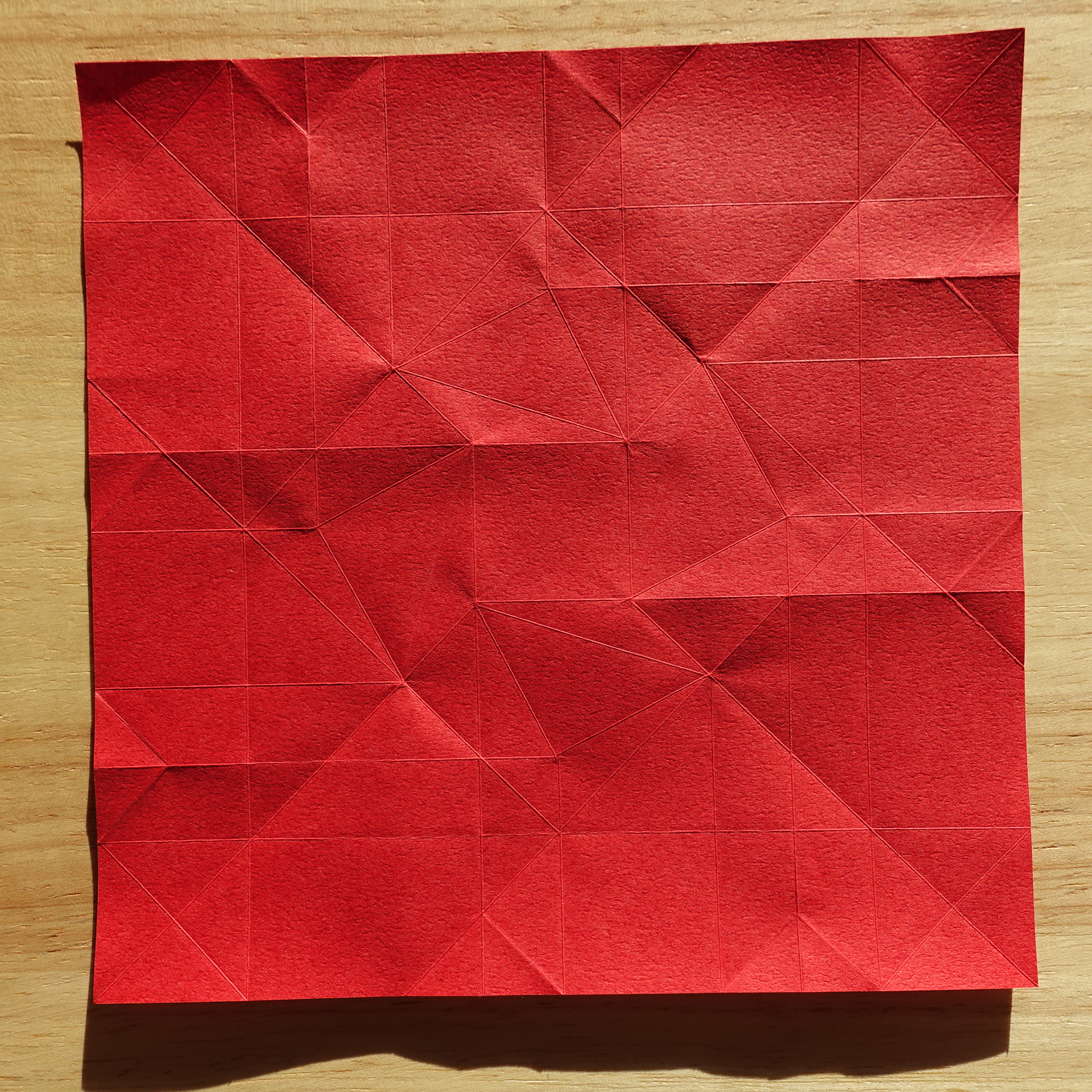

2. Before the collapse.
Step 3

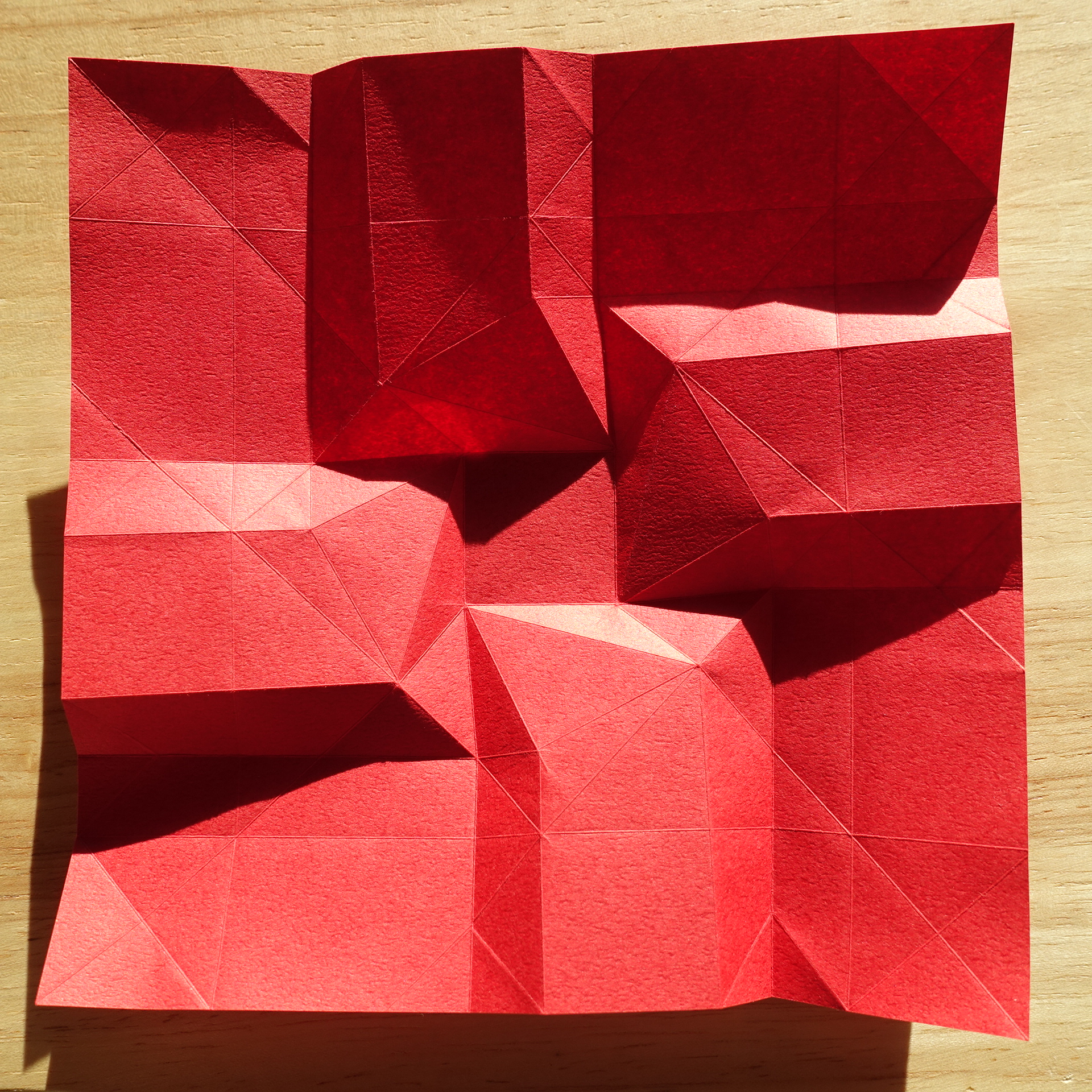

3. Collapse starts.
Step 4

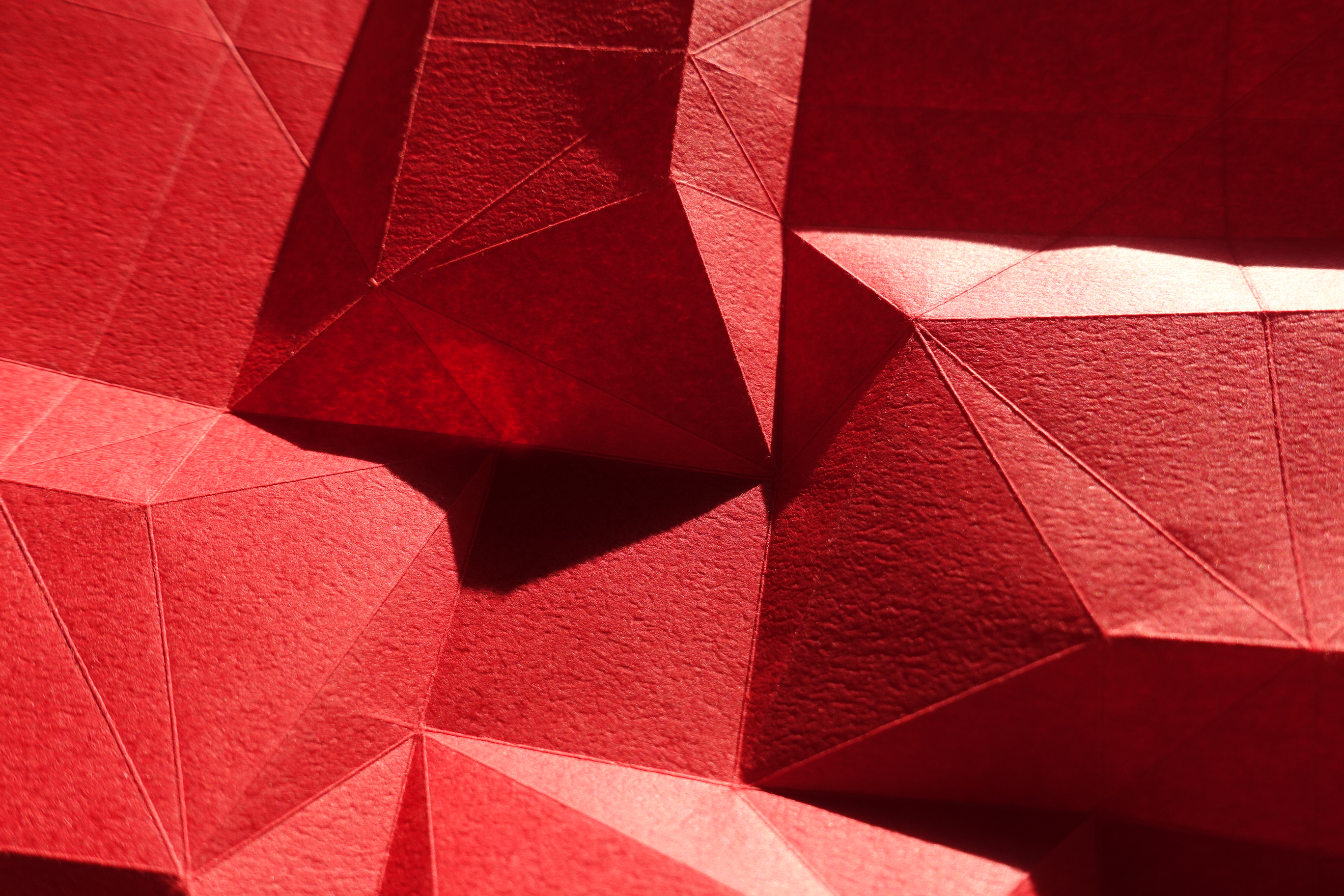

4. Close-up of collapse of central part (tessellation molecule).
Step 5

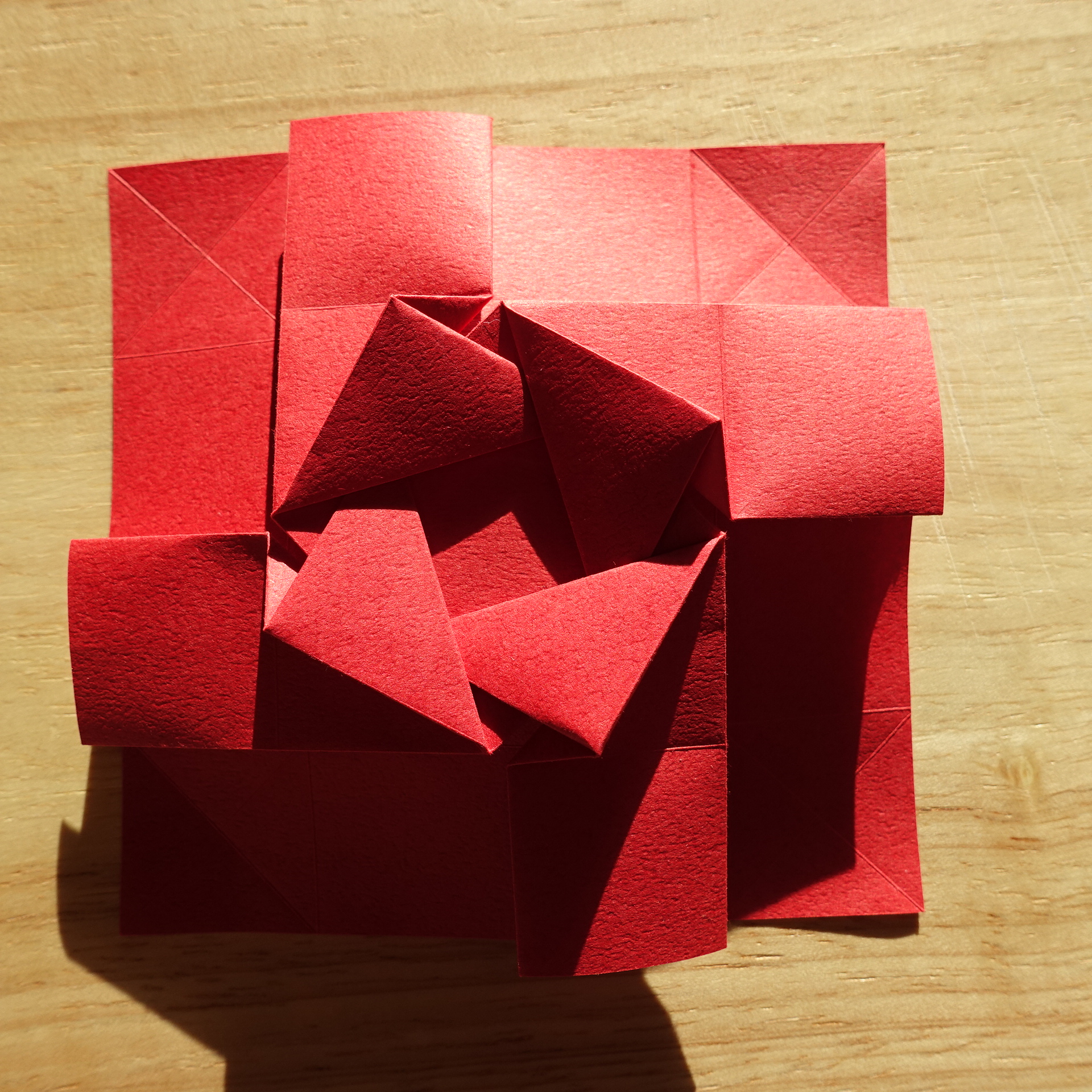

5. Molecule collapsed.
Step 6

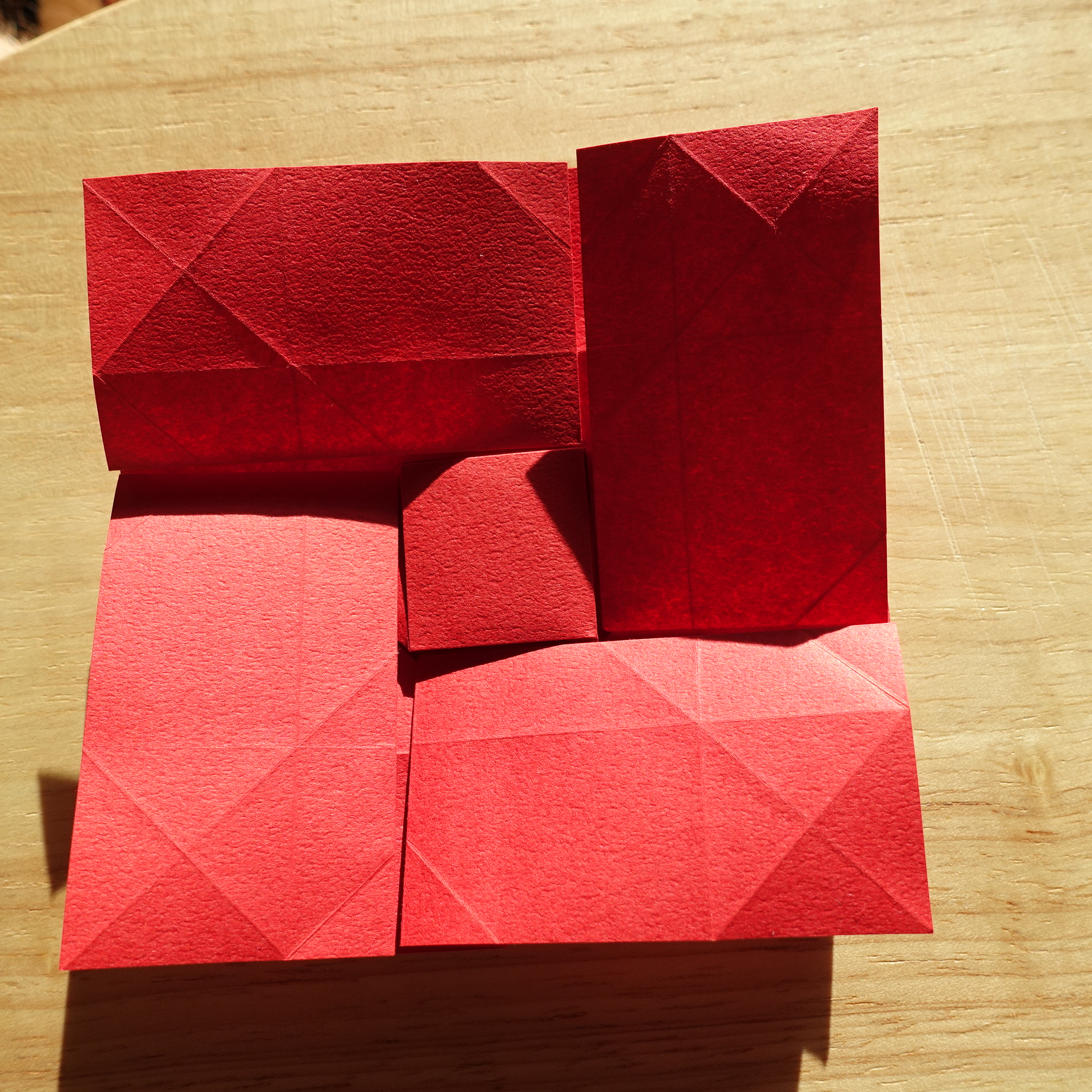

6. Back side.
Step 7

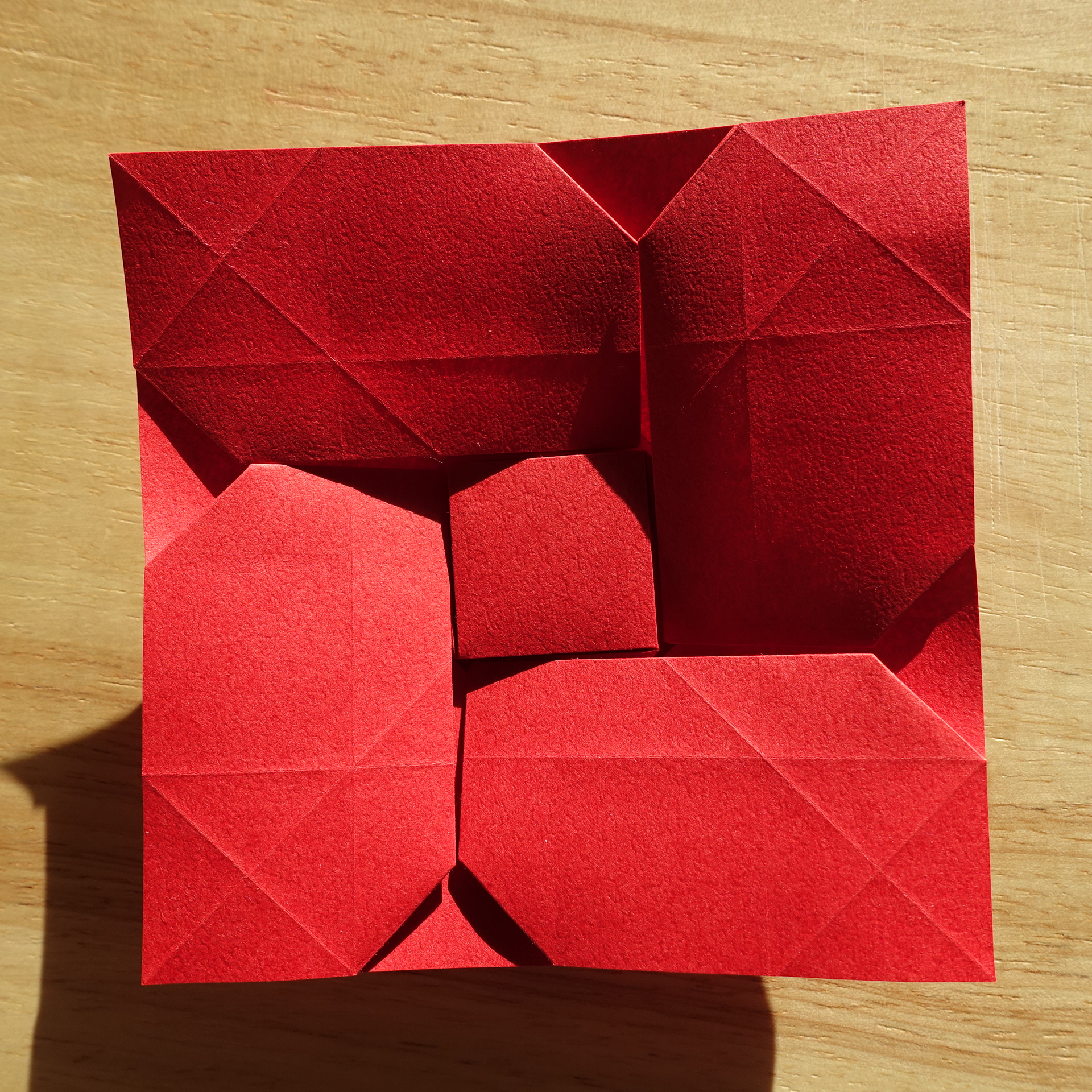

7. Adding wall locks on back side.
Step 8

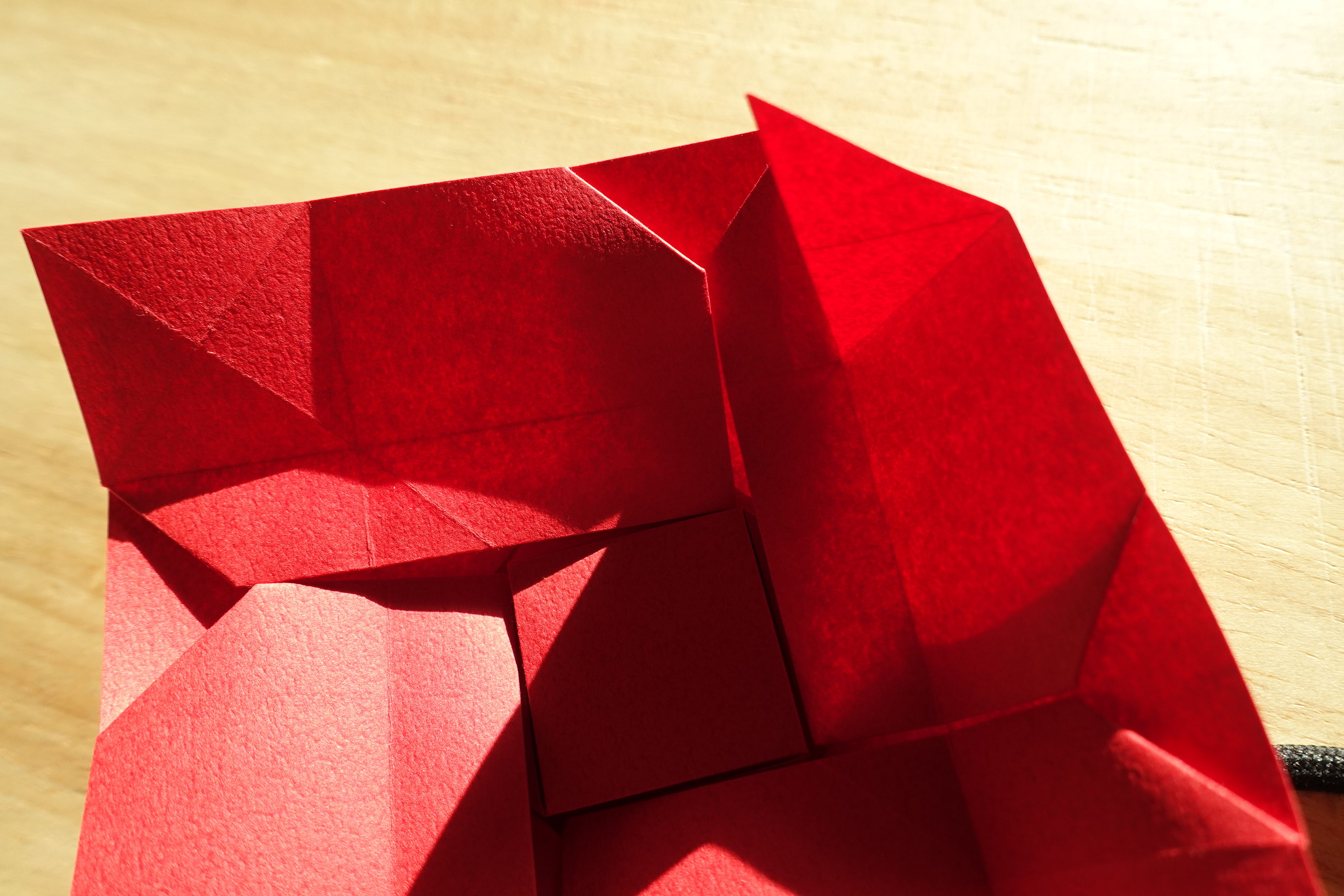

8. Pulling up the walls.
Step 9

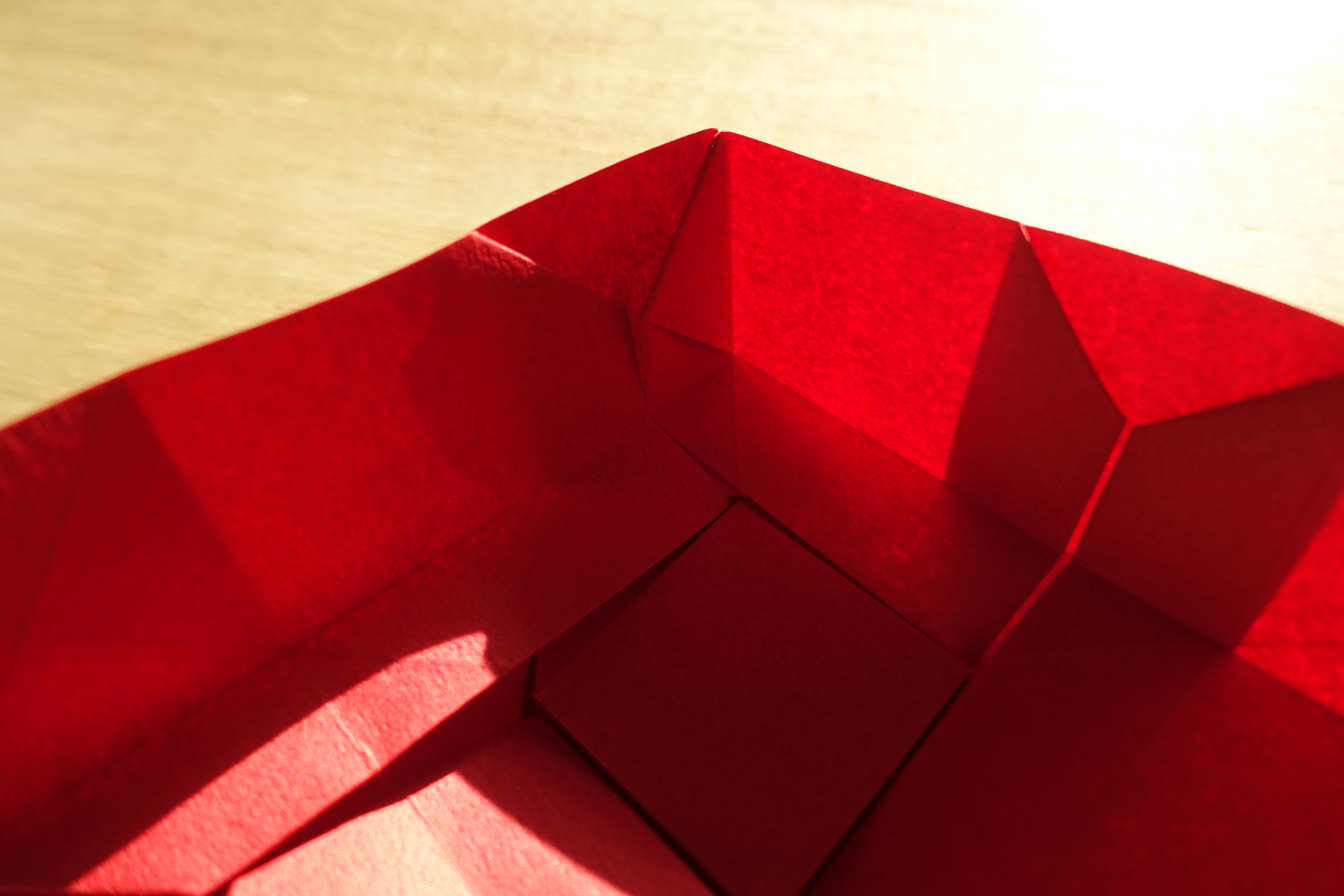

9. One corner locked.
Step 10

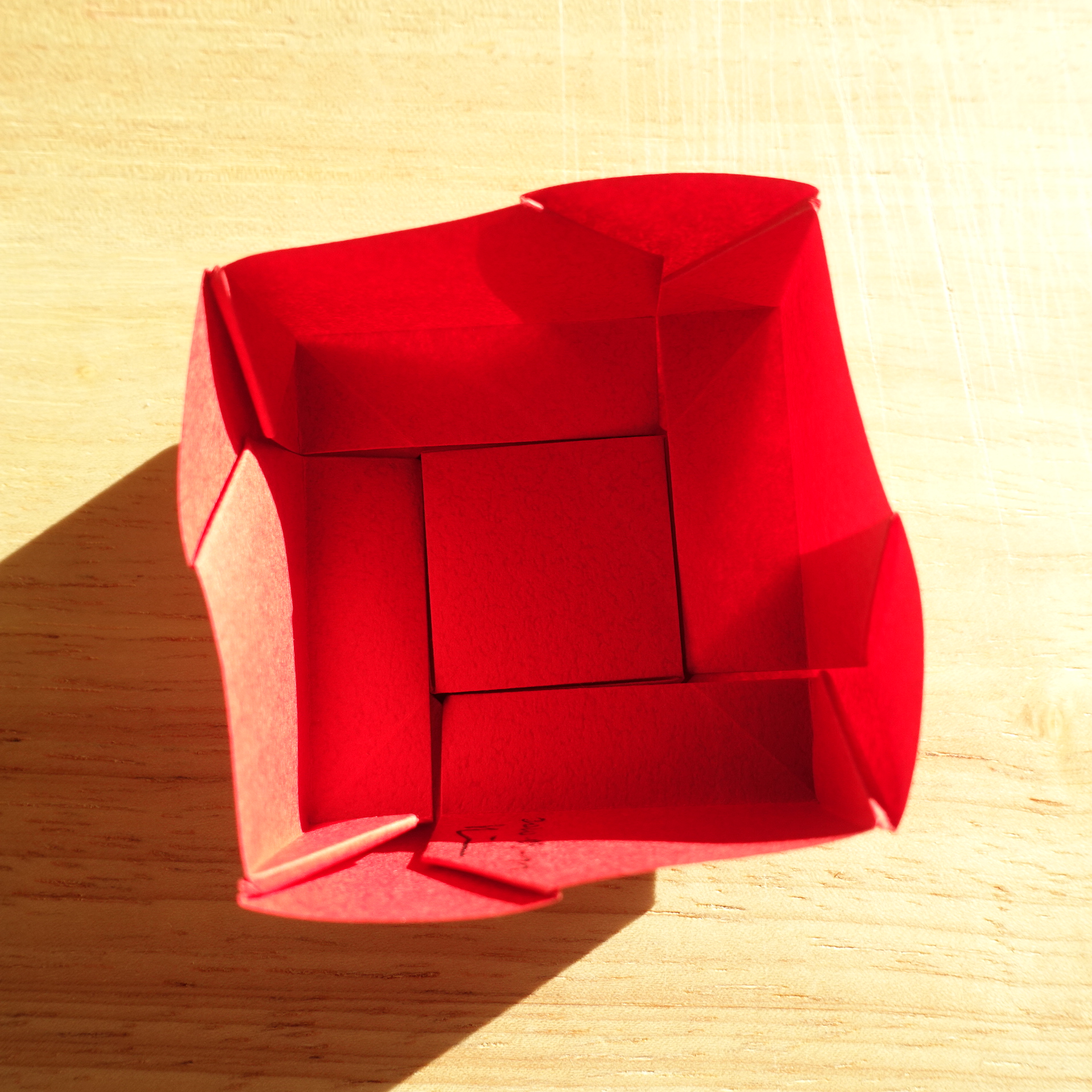

10. All corners locked.
Step 11

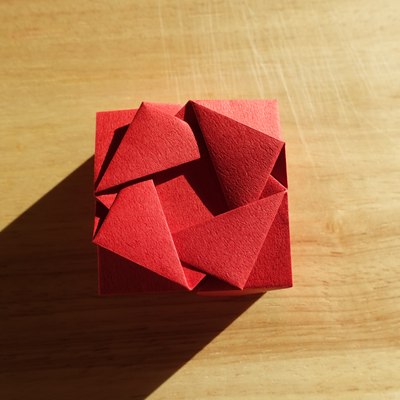

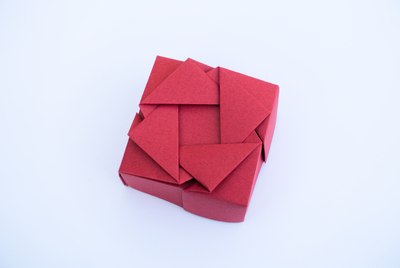

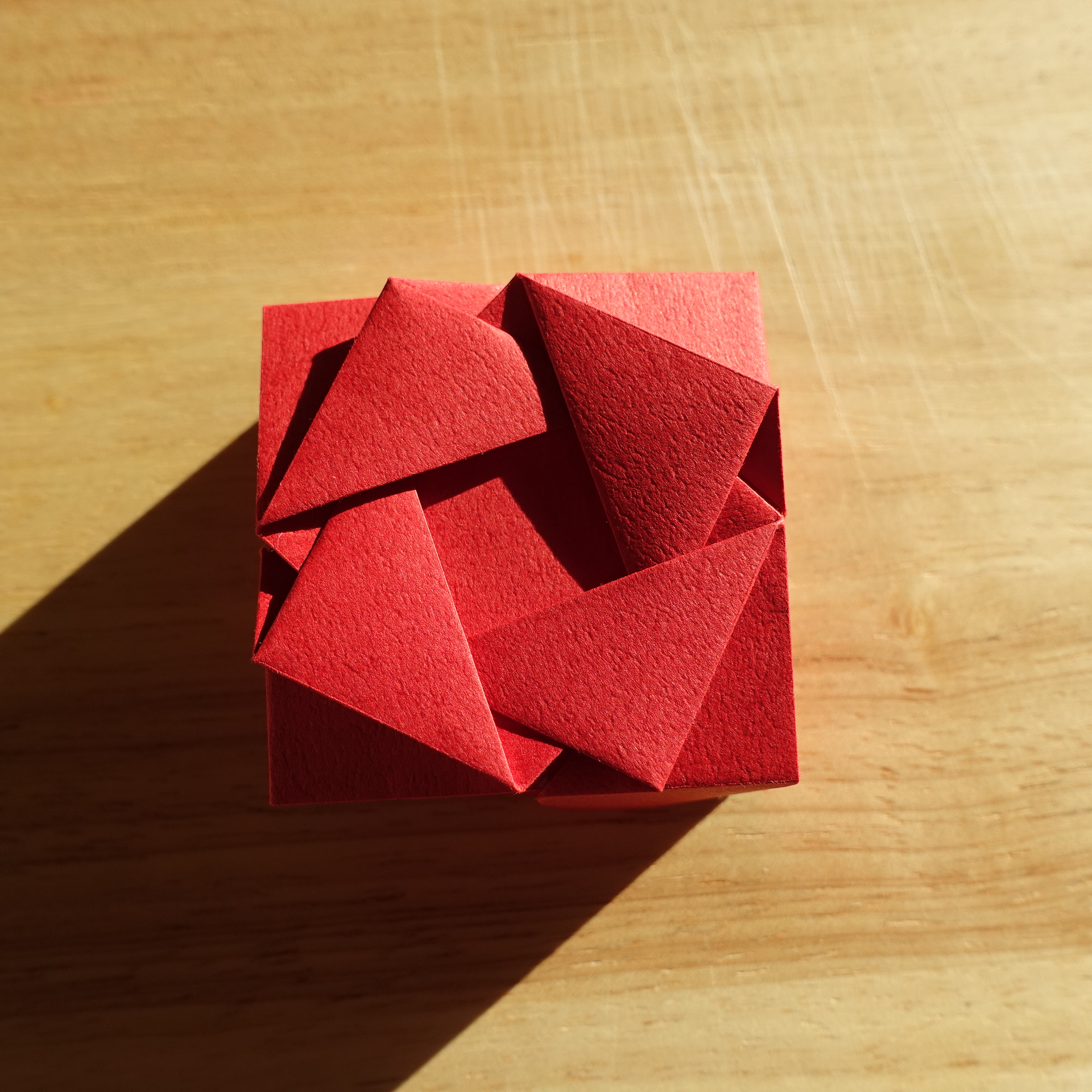

11. Turning over back to the front side. The model is complete.
